真空管アンプ製作

真空管アンプの自作記事です

製作資料

①50L6

②6AR5

③30A5



出典：実用真空管ハンドブック

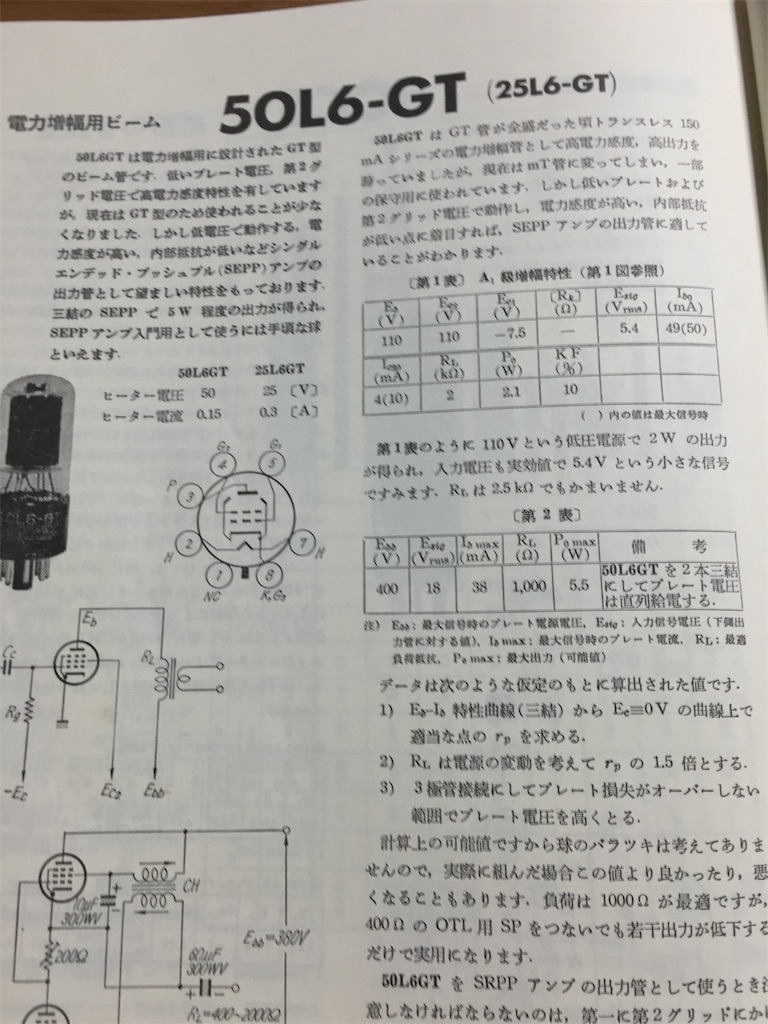

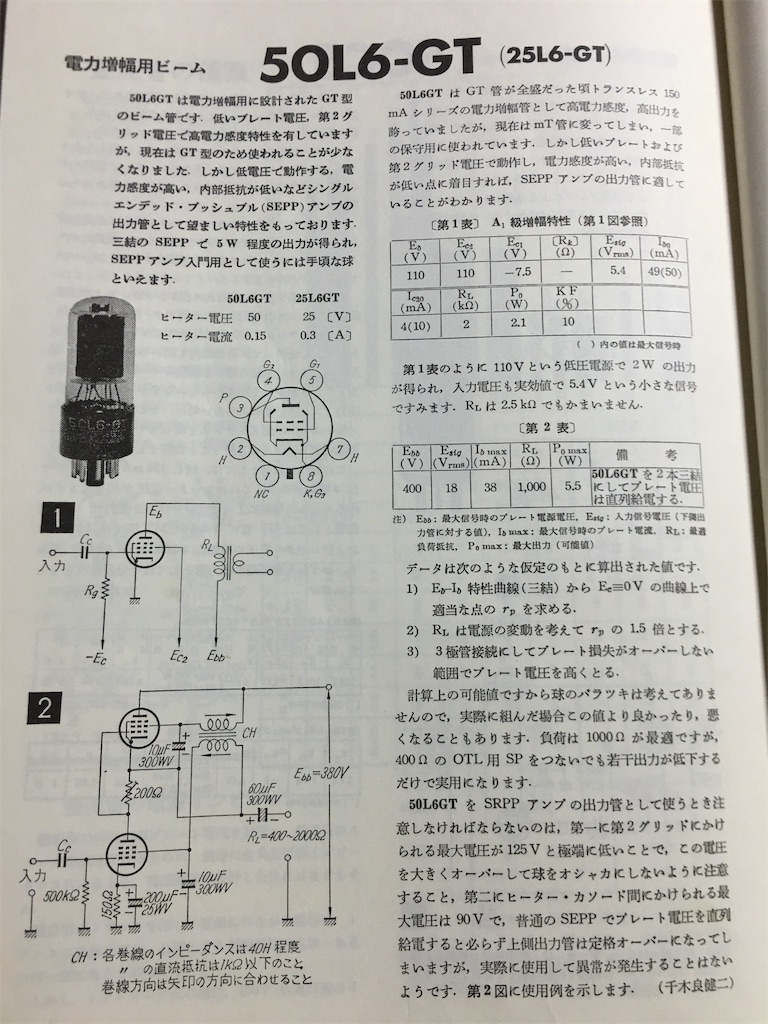

①50L6

f:id:arunas001:20241201103646j:image
f:id:arunas001:20241201103657j:image

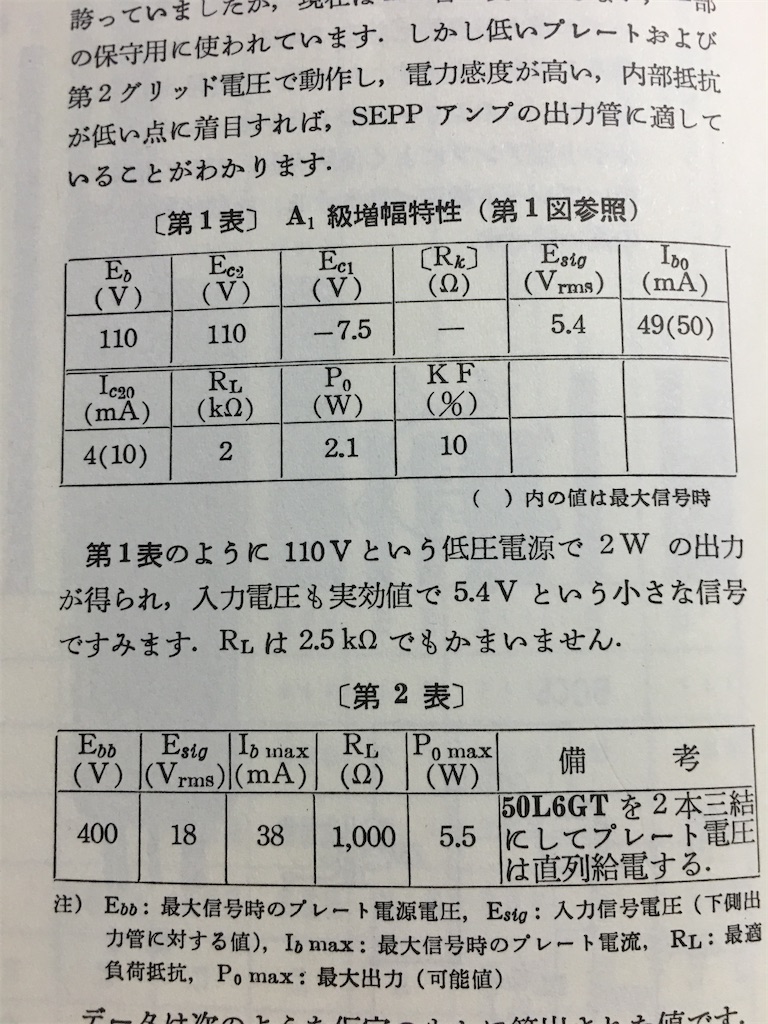

f:id:arunas001:20241201103650j:image

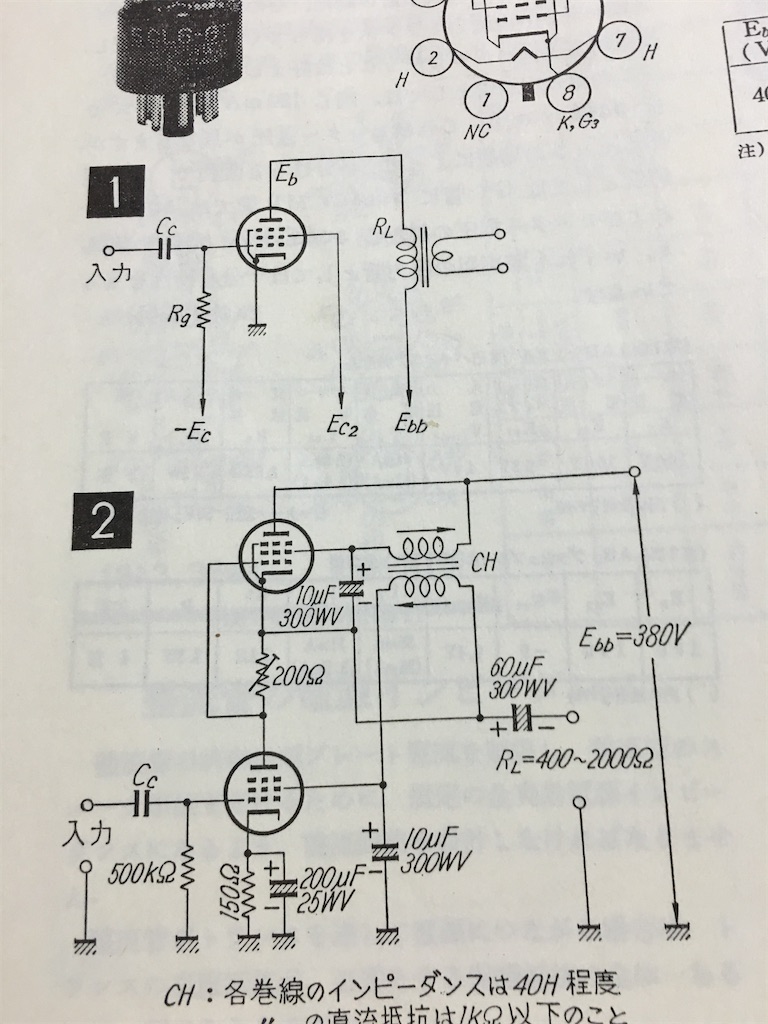

f:id:arunas001:20241201103639j:image

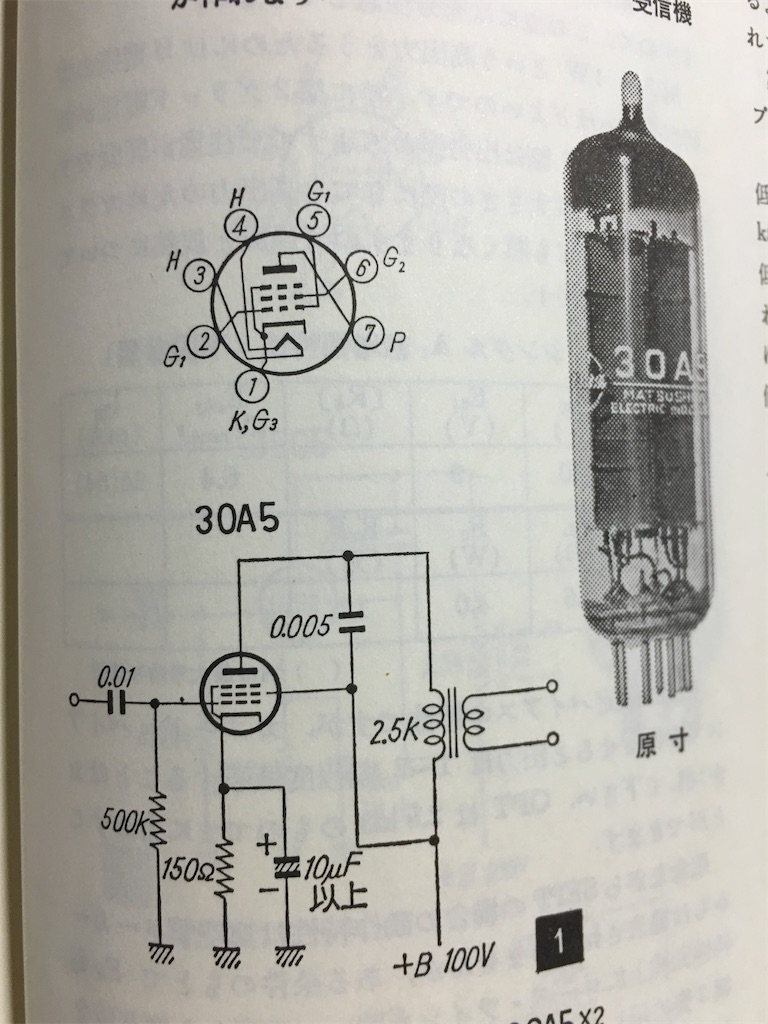

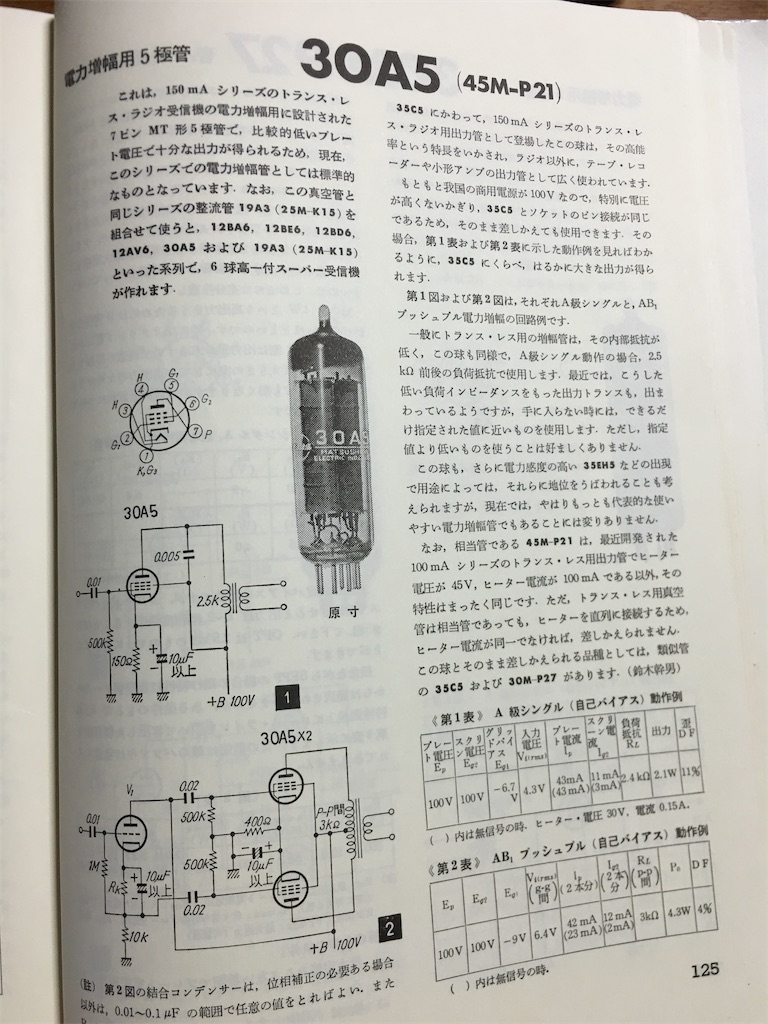

②30A5
f:id:arunas001:20241201103712j:image
f:id:arunas001:20241201103716j:image

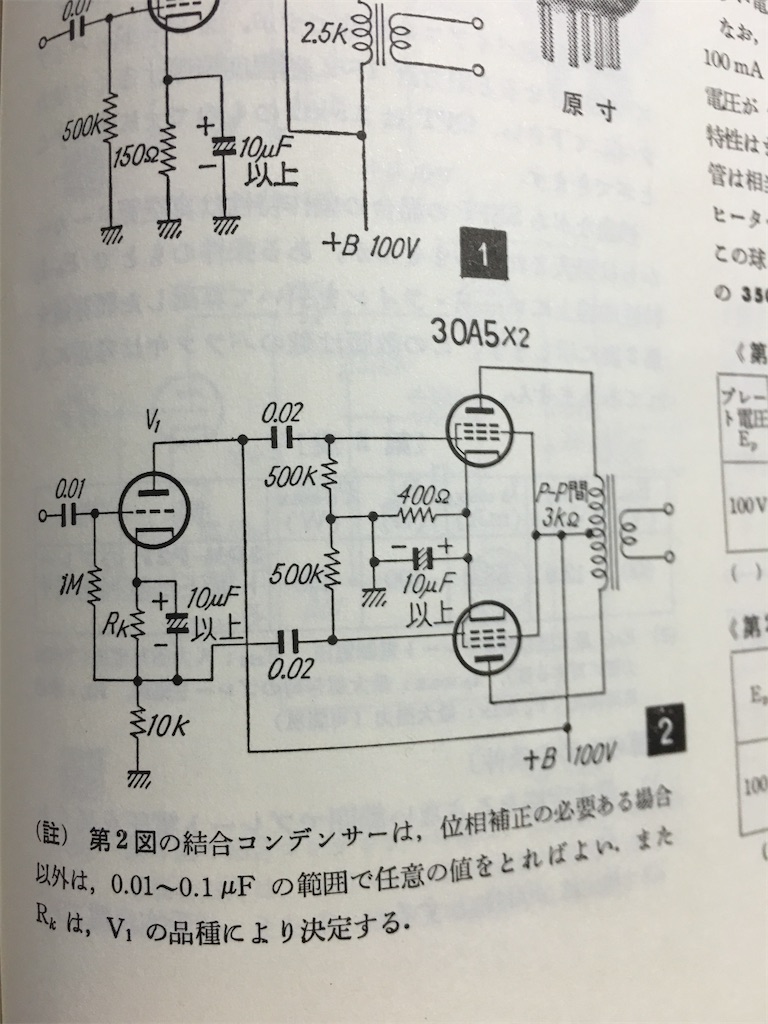

f:id:arunas001:20241201103723j:image

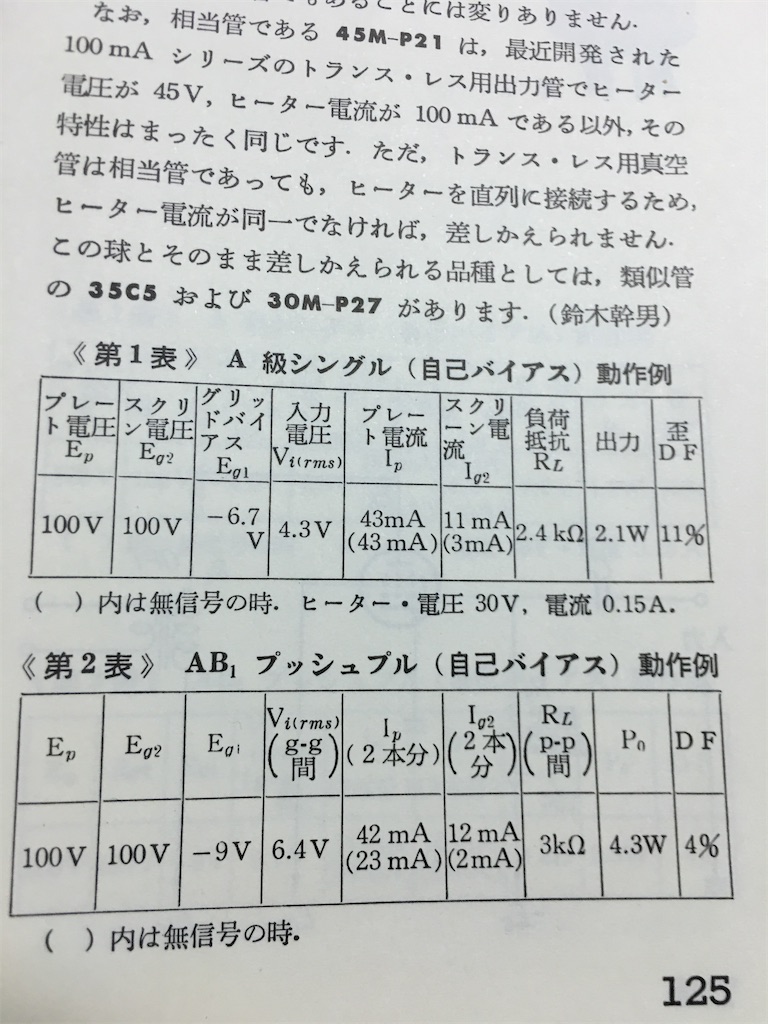

f:id:arunas001:20241201103705j:image

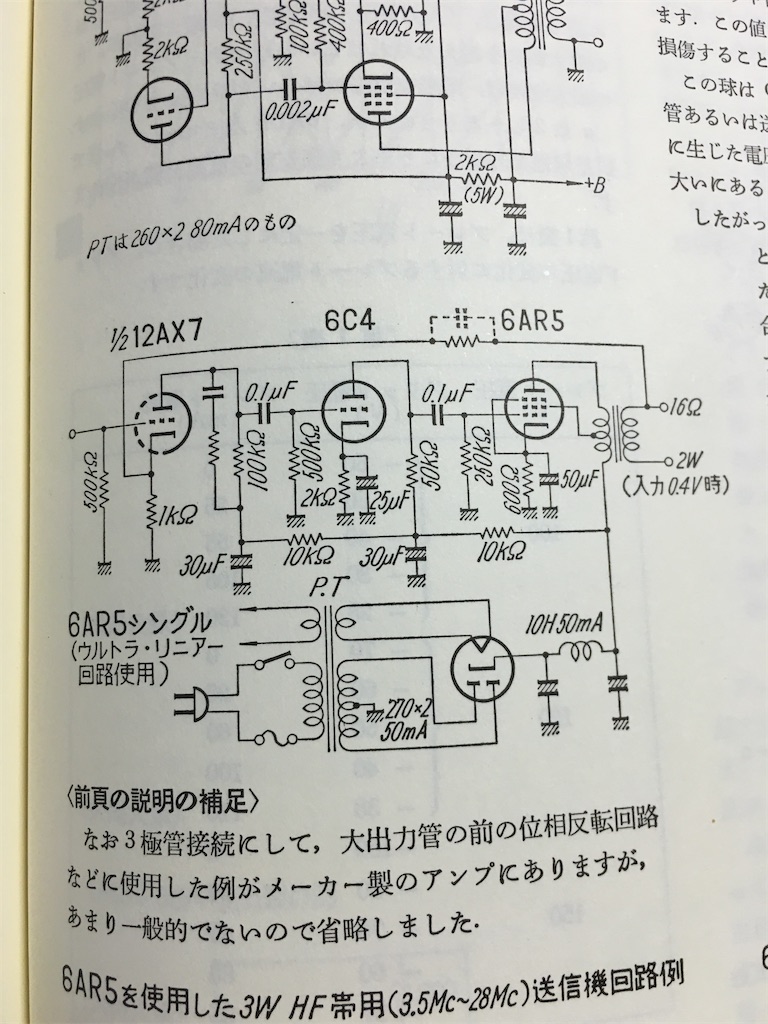

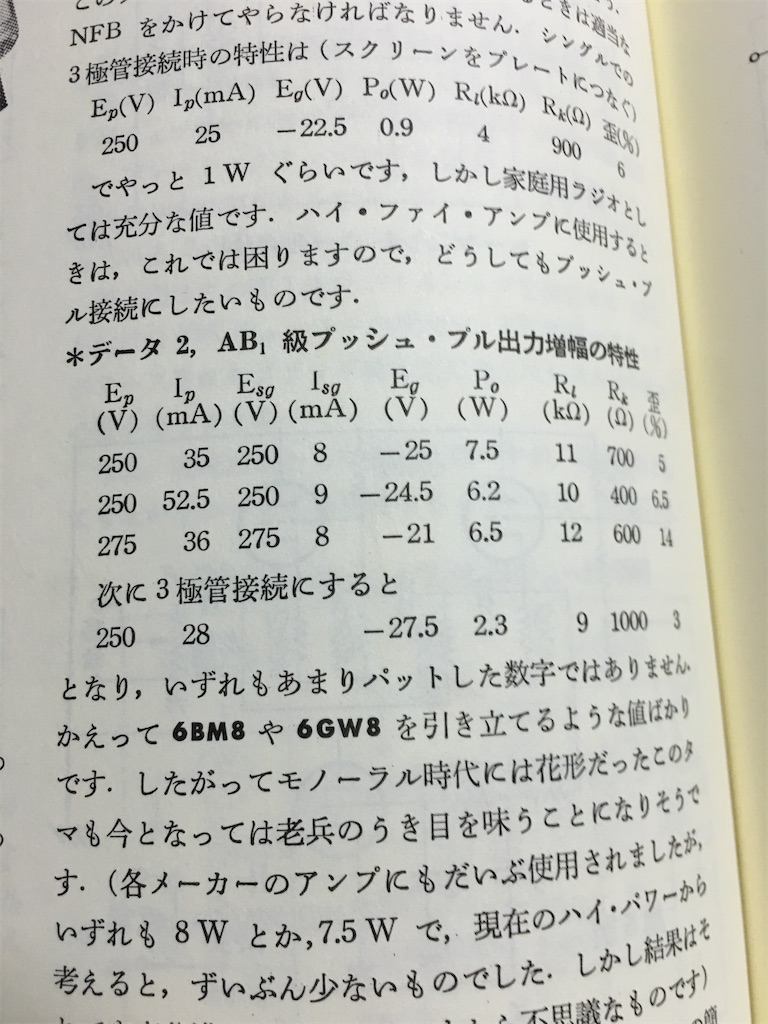

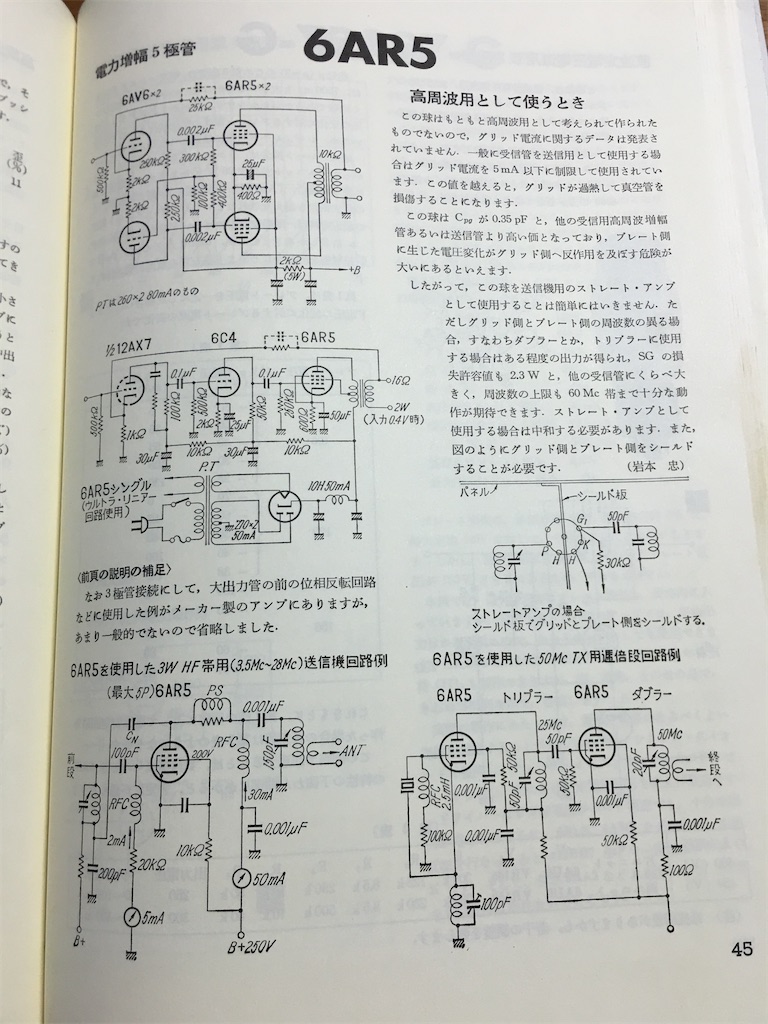

④6AR5
f:id:arunas001:20241201103709j:image

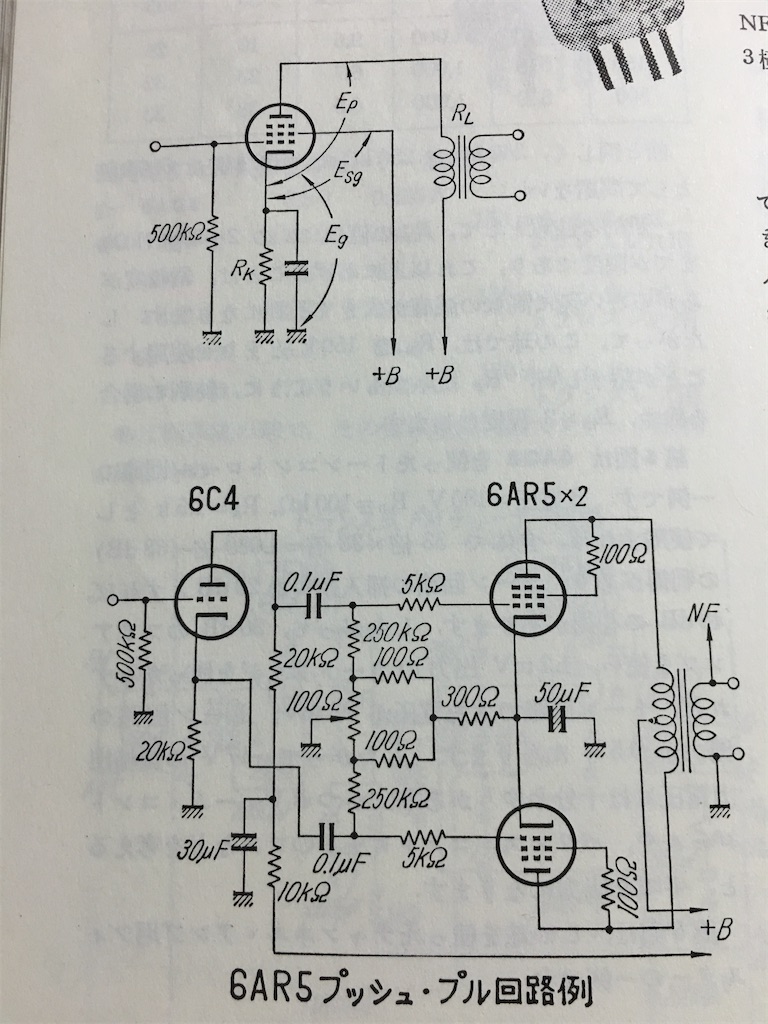

f:id:arunas001:20241201103643j:image

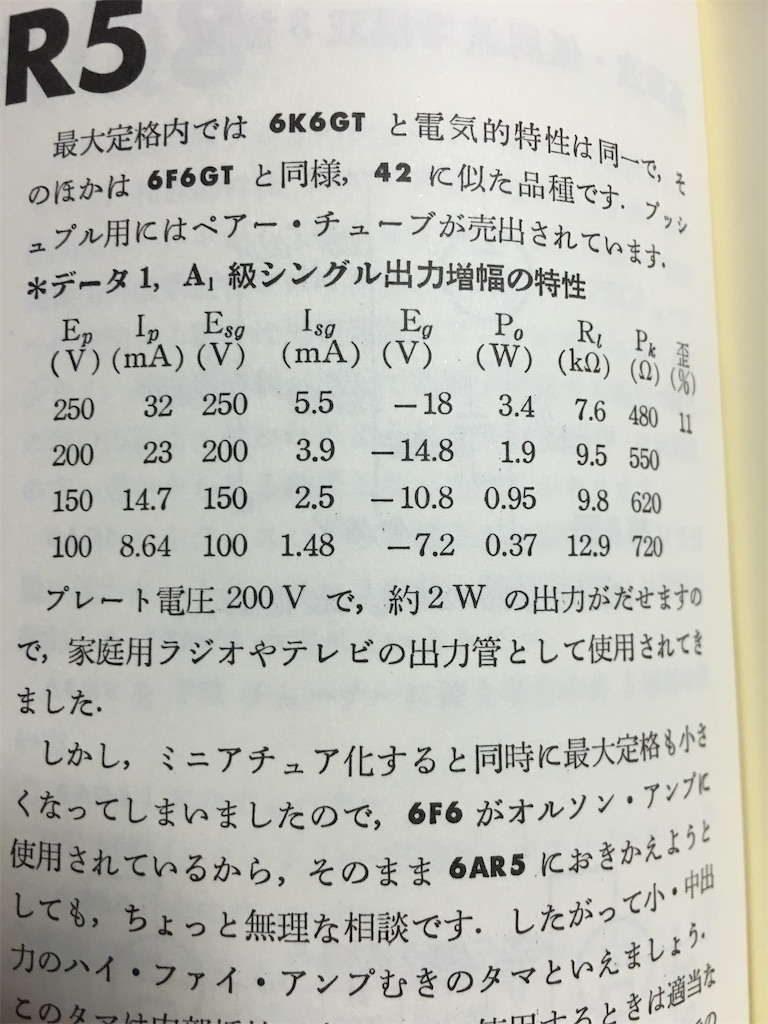

f:id:arunas001:20241201103720j:image
f:id:arunas001:20241201103701j:image

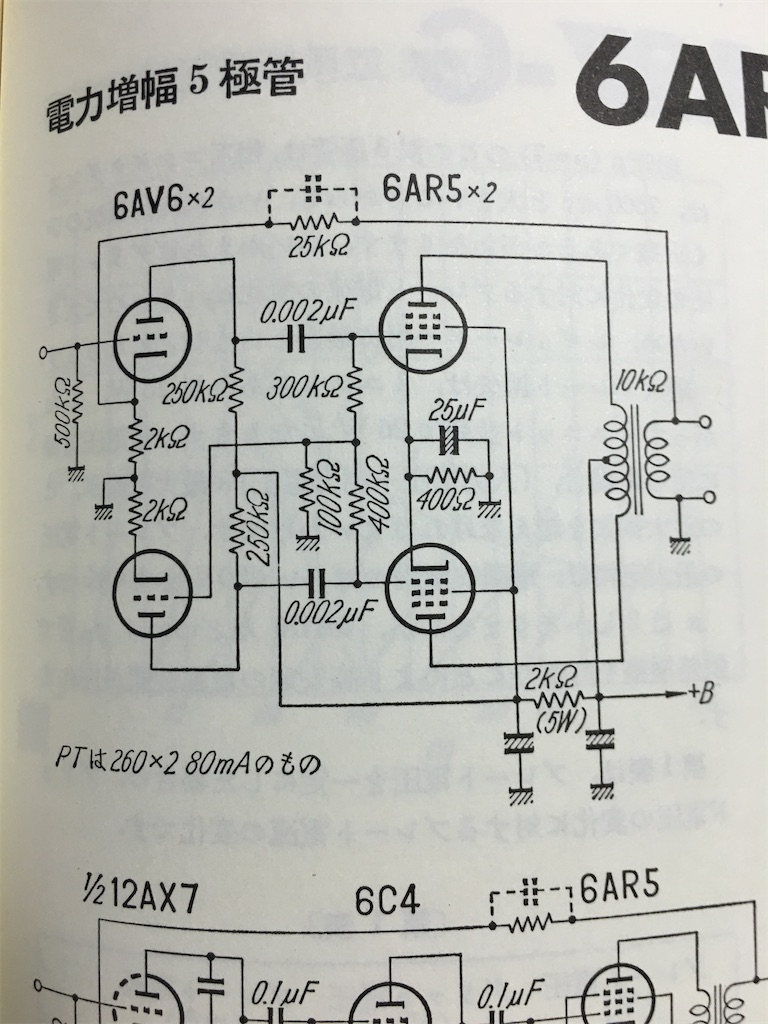

f:id:arunas001:20241201103653j:image
f:id:arunas001:20241201103635j:image
